33 Stops Enhancing the spiritual experience

With its state-of-the-art 165 pipe organ voices in four different styles, the Inspire series 233 was specially designed to enhance the spiritual experience. The organ features an integrated 2.1 audio system and can be upgraded with an external 4.2 audio system, making it ideal both for use at home and for a chapel of up to 200 people.

Stops

INNOVATIVE VOICE PALETTE SYSTEM

The organ – available in an oak design in different colors – features two keyboards, a 32-note pedalboard, and 33 original voices in the standard stop list. The innovative Voice Palette™ system allows for the combination of an infinite mix of voices in the various styles. This means the Inspire Series 233 is not just designed to give the freedom to perform any style, but also - to inspire the gathering with celestial music.


18 Orchestral voices Create your own soundscapes

In addition, there are a number of orchestral voices to choose from, including piano, harp, strings, trumpet, clarinet and handbells. With all of these possibilities, the Inspire Series 233 gives a blueprint for unlimited inspiration, enhancing the spiritual experience.

Orchestral voices

Specifications

Inspire Series 233

Voices

33 stops / 183 total voices

4 unique organ styles + Variant Library

165 Voice Palette™ voices
18 orchestral voices

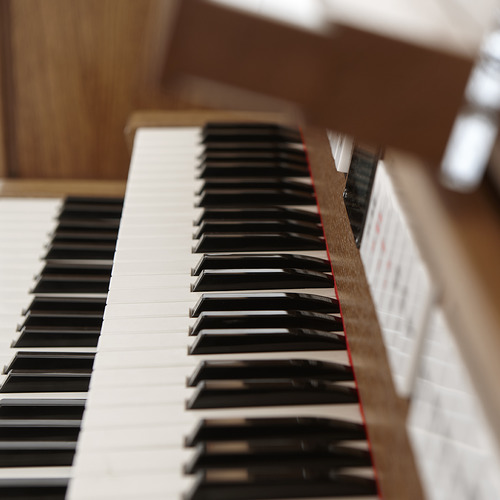

Keyboards

Velocity-sensitive “Pipe Organ Feel”
tracker touch keyboards

Pedalboard

Velocity-sensitive
32-note AGO pedalboard

General Pistons

10

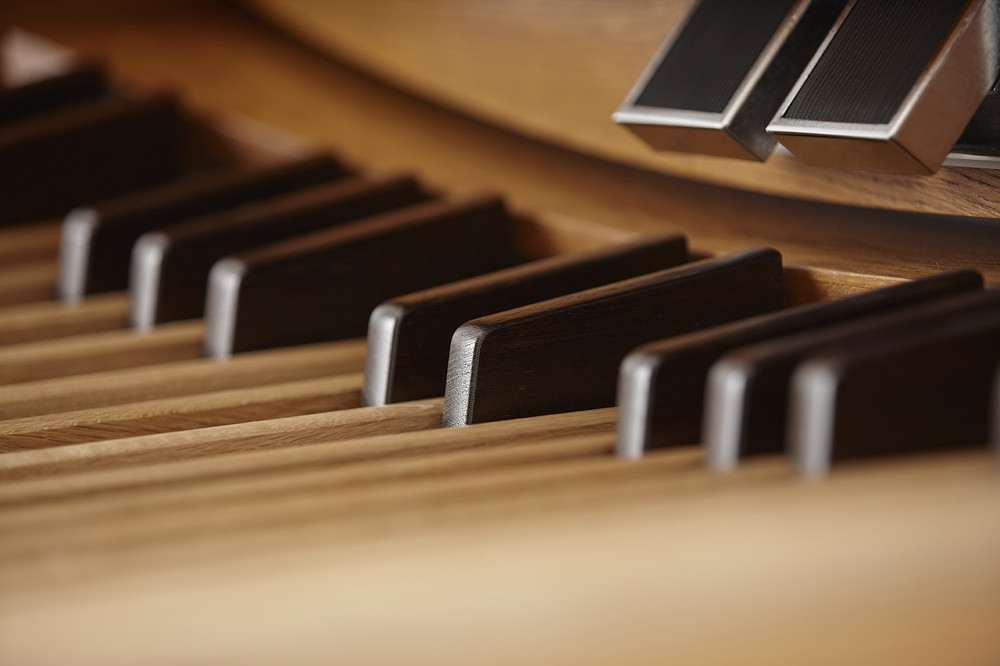

Toe Pistons

5 (9 more optional)

Divisional Pistons

5 Great, 5 Swell

Couplers

3 (Great to Pedal, Swell to Pedal, Swell to Great)

6 Orchestral Couplers (2 x Great, 2 x Swell, 2x Pedal)

Bass Coupler

Melody Coupler

Tremulants

2 (Great, Swell)

Shoes

2 (programmable)

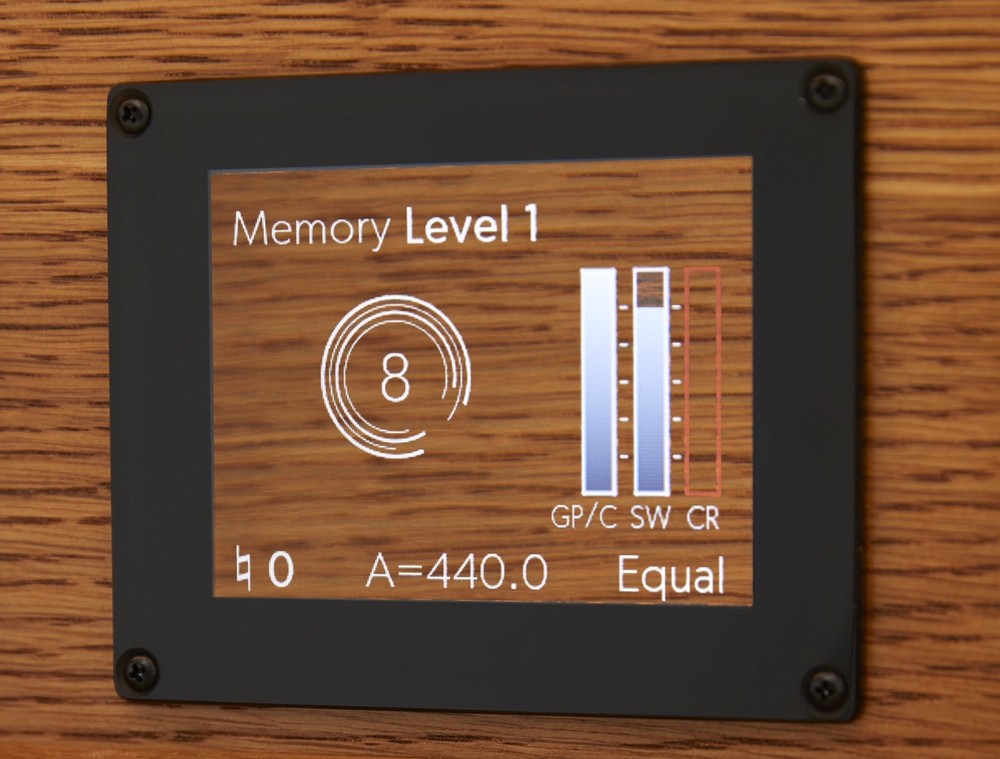

Memory

50 levels x 25 pistons (1250)

CONSOLE DIMENSIONS

Height: 46.7" (118.5 cm)

Width: 60.0” (152.4 cm)

Depth: 27.7” (70.3 cm)

Depth with pedalboard: 46.0” (116.8 cm)

AVAILABLE COLORS:

Dark

Oak

Medium

Oak

Light

Oak

Features

Inspire Series 233

  • Traditional wood veneer cabinet with deluxe wood tambour

  • Available in light, medium and dark oak veneer

  • Tab stop controls

  • Record/playback with STOP, PLAY, REC pistons

  • USB-enabled for unlimited storage of registration data and saved performances

  • Hymn Player automatically plays 350 built-in hymns with introduction & verse or Prelude mode

  • Bench in matching finish

  • Rolltop + lock

  • 32-note radiating AGO pedalboard velocity-sensitive for orchestral voices

  • Self-contained pedalboard mechanism for greater reliability on uneven flooring or carpeting

  • Kick switch programmable as Off, Next, Prev, Sustain and Gospel Rotor for orchestral voices

  • Programmable pedal F# sustain function for orchestral voices

  • Memory +/- pistons

  • 9 historic temperaments

  • True Sound Space: 12 real reverb environments

  • 2.1-channel internal audio system: 2 channels x 50 watts fullrange audio + 1 channel x 160 watts subwoofer

  • MIDI In and Out connections

  • Stereo headphone jack

  • 2 x 1/4” Line inputs

  • 2 x 1/4” Line outputs

  • Tuning control

  • -6/+5 transposer

  • 5 loudspeakers using coaxials for a rich and highly defined sound

  • 8-channel external audio outputs

  • 2-channel audio system for external loudspeakers (optional)

  • Onboard voicing finishing and leveling controls

  • Pipe organ modeling technologies

  • Great/Pedal Enclosed

  • Organ Type piston instantly activates American Eclectic, English Cathedral, French Romantic or German Baroque stops

  • Adjustable tremulants

Stoplist

GREAT

American Eclectic

Violone 16

Principal 8

Bourdon 8

Gamba 8

Erzähler Céleste II 8

Octave 4

Spitzflöte 4

Super Octave 2

Cornet V

Fourniture IV

Trumpet 8

Great Orch A

Great Orch B

Tremulant

Swell to Great

English Cathedral

Open Diapason 16

Open Diapason 8

Chimney Flute 8

Second Diapason 8

Salicional 8

Principal 4

Waldflute 4

Fifteenth 2

Cornet IV

Mixture IV

Tromba 8

French Romantic

Montre 16

Montre 8

Bourdon 8

Flûte Harmonique 8

Gambe 8

Prestant 4

Flute Ouverte 4

Doublette 2

Cornet IV

Fourniture IV

Trompette 8

German Baroque

Prinzipal 16

Prinzipal 8

Rohrflöte 8

Quintatön 8

Salicional 8

Oktave 4

Gemshorn 4

Super Oktave 2

Kornett V

Mixtur VI

Trompete 8

Variant Library

Quintaton 16

Diapason 8

Clarabel Flute 8

Doppel Flute 8

Voix des Anges II 8

Harmonic Flute 4

Quint 2-2/3

Harmonic Piccolo 2

Terz 1-3/5

Cymbel III

Tuba 8

SWELL

American Eclectic

Bourdon Doux 16

Diapason 8

Bourdon 8

Viole Céleste II 8

Octave 4

Flute Traverse 4

Nazard 2-2/3

Block Flute 2

Tierce 1-3/5

Plein Jeu IV

Double Trumpet 16

Trumpet 8

Oboe 8

Swell Orch A

Swell Orch B

Tremulant

English Cathedral

Bourdon 16

Horn Diapason 8

Stopped Diapason 8

Viola Céleste II 8

Octave 4

Flute 4

Quintflute 2-2/3

Lieblich Piccolo 2

Seventeenth 1-3/5

Mixture III

Trombone 16

Trumpet 8

Cornopean 8

French Romantic

Dulciane 16

Montre 8

Bourdon 8

Voix Céleste II 8

Prestant 4

Flûte Octaviante 4

Nazard 2-2/3

Octavin 2

Tierce 1-3/5

Plein Jeu III

Bombarde 16

Trompette 8

Hautbois 8

German Baroque

Lieblich Gedackt 16

Prinzipal 8

Holzgedackt 8

Gamba 8

Oktave 4

Flöte 4

Nasard 3

Waldflöte 2

Quinte 1-1/3

Scharff IV

Posaune 16

Trompete 8

Dulzian 8

Variant Library

Violon 16

Geigen Principal 8

Harmonic Flute 8

Flute Céleste II 8

Fugara 4

Rohrflute 4

Sesquialtera II

Italian Principal 2

Sifflöte 1

Ripieno IV

Corno di Bassetto 16

Clarinet 8

Vox Humana 8

PEDAL

American Eclectic

Contra Bourdon 32

Principal 16

Subbass 16

Octave 8

Bass Flute 8

Choral Bass 4

Mixture III

Bombarde 16

Trumpet 8

Pedal Orch A

Pedal Orch B

Great to Pedal

Swell to Pedal

English Cathedral

Dbl. Open Diapason 32

Open Diapason 16

Bourdon 16

Diapason 8

Flute 8

Fifteenth 4

Mixture III

Trombone 16

Tromba 8

French Romantic

Contra Violon 32

Contrebasse 16

Soubasse 16

Montre 8

Bourdon 8

Prestant 4

Plein Jeu III

Bombarde 16

Trompette 8

German Baroque

Untersatz 32

Prinzipalbass 16

Bordun 16

Oktave 8

Gedackt Bass 8

Oktave 4

Hintersatz III

Posaune 16

Trompete 8

Variant Library

Open Wood 32

Violone 16

Bourdon Doux 16

Violoncello 8

Lieblich Bourdon 8

Nachthorn 4

Clairon 4

Bass Clarinet 16

Trombone 8

Library

Inspire Series 233

18 BUILT-IN ORCHESTRAL VOICES:

Orchestral voices are accessed through any of the six Orchestral Couplers.

• Piano

• Elect. Piano

• Harp

• Harpsichord

• Celesta

• Strings

• Slow Strings

• Choir Oohs

• Choir Aahs

• Gospel Organ I

• Gospel Organ II

• Flute

• Trumpet

• Oboe

• Clarinet

• Handbells

• Timpani

• Chimes
