89 STOPS THE FUTURE OF ORGANS

From leading congregational singing to captivating concert hall audiences, Infinity Series organs shine in every environment. With up to 44 external audio channels, this four–manual, pipe-compatible organ is perfect for leading congregational singing, impressing concert audiences as a solo instrument, and elevating ensembles to the new heights.

This majestic instrument honors the legacy of the traditional pipe organ and combines it with todays’ state-of-the-art technology. The spectacular, true-to-life pipe organ sound and unmatched versatility of the Infinity Series will shape the future of organ music.

SPECIFICATIONS

STOPS

ONE INSTRUMENT

ONE INSTRUMENT INFINITE POSSIBILITIES

Abundant tonal variety makes creating music a pleasure. With 89 stops, a vast stop library of beautiful pipe and premium orchestral sounds, four unique organ styles, and a Solo division, this instrument has a tremendous 531 total voices available to the organist at all times. The inclusion of beautiful orchestral stops such as the Oboe, Strings, Handbells, Horns, and many more, make it easy for organists to incorporate these voices for transcriptions, arrangements, and contemporary settings. Performers can amaze audiences with Timpani, Acoustic Bass, or other thrilling instruments using the exclusive Rodgers velocity-sensitive pedalboard.

To bring out the beauty of a melody line, the ideal stops are at the organist’s fingertips with a dedicated Solo division. These stops all have dedicated drawknobs and can be assigned to any manual.


INFINITY

Banner Infinity Series 489

Specifications

Infinity Series 489

Specifications

531 total voices

89 Main (98 Main including Library A/B couplers)

261 Voice Palette Stops

120 Organ Library stops and ensembles

61 Orchestral Library Voices

Chimes and Zimbelstern

KEYBOARDS AND PEDALBOARD

THUMB PISTONS

Toe pistons

12 General, 5 Pedal, plus 7 functional controls

Shoes

3 Expression, Crescendo

Memory

99 internal memory banks, unlimited with the USB drive

Couplers

Swell and Choir octave couplers; 9 Library/MIDI couplers; Bass, Swell, Choir, and Solo Melody couplers

Tremulants

Great, Swell, Choir, Solo, Main and Flute Tremulant Alternate

AVAILABLE COLORS:

Dark

Oak

Medium

Oak

Light

Oak

Features

Infinity Series 489

  • Newly-designed traditional wood veneer cabinet with deluxe wood tambour

  • Four-way adjustable Music Desk

  • Adjustable deluxe bench with music storage

  • High-Resolution Color LCD display

  • Built-in and conveniently located headphone jack

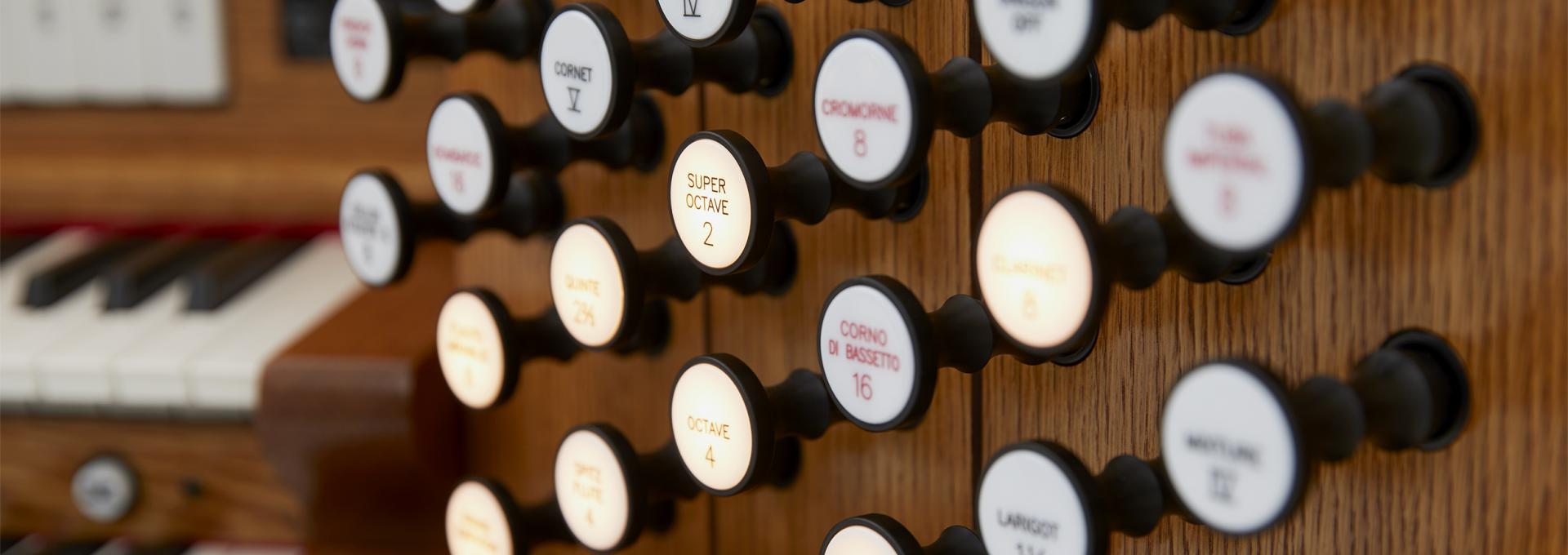

  • Lighted (standard) or moving (optional) drawknobs

  • Dimmable illumination for the entire console

  • Locking rolltop

  • Our Direct Streaming technology ensures extremely fast startup times, in- stantly available voices, and long- term reliability

  • Pipe compatibility with wind- blown pipes

  • User-friendly transposer thumb pistons

  • Memory +/– pistons

  • Organ Type piston

  • Hymn Player automatically plays 350 built-in hymns with introduction and verse or Prelude mode

  • Built-in Record/Playback system with STOP, PLAY, REC thumb pistons

  • USB-enabled for unlimited storage of registration data and saved performances

  • Built-in demo songs

  • Built-in circuit board for BluetoothTM page turn technology

  • Onboard tonal finishing controls

  • Programmable pedal F# sustain function

  • MIDI In/Out, Aux In L/R,Line Out L/R ports

  • Self-contained pedalboard mechanism for greater reliability on uneven flooring or carpeting

  • Kick switch programmable as Off, Next, Prev, Sustain for orchestral voices, Rotor on/off for Drawbars 1 and Drawbars 2 (orchestral voices)

  • PREV/NEXT piston sequencer recall

  • 9 historic temperaments

  • Tuning control

  • Stereo headphone jack

  • Onboard voicing finishing and leveling controls

  • Pipe organ modeling technologies

  • Pipe compatible with Pipes Off and Ancillary On controls

  • Great/Pedal Unenclosed thumb piston

  • Adjustable tremulants

  • User-friendly Menu System

  • Up to 44 external audio channels

Stoplist

GREAT

AMERICAN ECLECTIC

Diapason 16'

Violone 16’

Principal 8’

Diapason 8’

Harmonic Flute 8’

Chimney Flute 8’

Gemshorn 8’

Octave 4’

Spitzflute 4’

Quinte 2 2/3’

Super Octave 2’

Cornet V

Fourniture IV

Cymbale III

Trombone 16’

Trumpet 8

Chimes

Zimbelstern

Library/MIDI A

Library/MIDI B

Tremulant

Swell to Great 16, 8, 4

Choir to Great 16, 8, 4

Solo to Great 8

ENGLISH CATHEDRAL

Double Open Diapason 16’

Contra Clarabella 16'

Open Diapason 8'

Second Diapason 8'

Clarabel Flute 8'

Rohrflute 8'

Salicional 8'

Principal 4'

Waldflute 4'

Twelfth 2 2/3'

Fifteenth 2’

Cornet IV

Mixture IV

Fourniture IV

Contra Tromba 16’

Tromba 8’

FRENCH ROMANTIC

Montre 16’

Bourdon 16’

Montre 8'

Diapason 8’

Flûte Harmonique 8'

Bourdon 8'

Gambe 8'

Prestant 4'

Flute Ouverte 4'

Quinte 2 2/3’

Doublette 2'

Cornet IV

Fourniture IV

Cymbale IV

Bombarde 16’

Trompette 8’

GERMAN BAROQUE

Prinzipal 16’

Quintatön 16’

Prinzipal 8'

Salicional 8'

Gamba 8'

Rohrflöte 8'

Quintatön 8'

Oktave 4'

Gemshorn 4'

Nasat 2 2/3'

Super Octave 2’

Kornett V

Mixtur VI

Cimbel III

Contra Trompete 16’

Trompete 8’

SWELL

AMERICAN ECLECTIC

Bourdon Doux 16'

Diapason 8’

Geigen Principal 8'

Bourdon 8'

Flauto Dolce 8'

Flute Céleste 8'

Viola di Gamba 8'

Viola Céleste 8'

Aeoline Céleste II 8'

Octave 4’

Traverse Flute 4'

Viola 4'

Nazard 2 2/3’

Octavin 2'

Tierce 1 3/5’

Mixture V

Scharff III

Double Trumpet 16’

Trumpet 8’

Oboe 8’

Vox Humana 8’

Clarion 4’

Library/MIDI A

Library/MIDI B

Tremulant

Swell 16

Swell Unison Off

Swell 4

Choir to Swell 8,4

Solo to Swell 8

ENGLISH CATHEDRAL

Bourdon 16’

Horn Diapason 8'

Violin Diapason 8'

Stopped Diapason 8'

Harmonic Flute 8’

Unda Maris II 8’

Salicional 8'

Viole Céleste 8'

Aeoline 8'

Octave Gamba 4'

Flute 4'

Violetta 4'

Quintflute 2 2/3'

Lieblich Piccolo 2'

Seventeenth 1 3/5'

Full Mixture V

Sharp Mixture lll

Contra Trumpet 16'

Trumpet 8’

Cornopean 8’

Voix Humaine 8’

Clairon 4’

FRENCH ROMANTIC

Dulciane 16’

Montre 8’

Salicional 8'

Bourdon 8'

Flûte Traversière 8'

Flûte Céleste II 8'

Viole de Gambe 8'

Voix Céleste 8'

Voix des Anges II 8'

Prestant 4'

Flûte Octaviante 4'

Violinas II 4'

Nasard 2 2/3'

Flute à Bec 2'

Tierce 1 3/5’

Plein Jeu V

Cymbale III

Bombarde 16’

Trompette 8’

Hautbois 8'

Voix Humaine 8’

Petite Clairon 4'

GERMAN BAROQUE

Lieblich Gedackt 16'

Prinzipal 8'

Geigen 8'

Holzgedackt 8'

Gross Flute 8'

Voce Umana 8'

Gamba 8'

Schwebung 8'

Unda Maris II 8’

Oktave 4'

Flöte 4'

Fugara 4'

Nasard 2 2/3'

Waldflöte 2’

Quinte 1 1/3’

Mixtur V

Scharff III

Posaune 16’

Trompete 8’

Dulzian 8’

Vox Humana 8’

Rohr Schalmei 4’

CHOIR

AMERICAN ECLECTIC

Erzähler 16’

Principal 8’

Holzgedackt 8'

Concert Flute 8'

Viole Céleste II 8'

Erzähler Céleste II 8'

Octave 4’

Koppelflute 4'

Klein Octave 2'

Zauberflute 2’

Larigot 1 1/3’

Mixture IV

Scharf IV

Corno di Bassetto 16’

Clarinet 8’

Cromorne 8’

Tuba Imperial 8’

Library/MIDI A

Library/MIDI B

Tremulant

Choir 16

Choir Unison Off

Choir 4

Swell to Choir 16, 8, 4

Solo to Choir 8

ENGLISH CATHEDRAL

Gemshorn 16’

Diapason 8’

Gedackt 8'

Flauto Mirabilis 8'

Gemshorn Céleste II 8'

Muted Violins II 8'

Principal 4'

Orchestral Flute 4'

Super Octave 2’

Nachthorn 2'

Nineteenth 1 1/3'

Mixture IV

Sifflute 1’

Basson 16’

English Horn 8’

Basson 8’

Royal Tuba 8’

FRENCH ROMANTIC

Violon 16’

Montre 8’

Bourdon 8'

Flûte Harmonique 8'

Viola Céleste II 8'

Dulcett Céleste II 8'

Prestant 4'

Nachthorn 4'

Italian Principal 2'

Piccolo 2'

Quinte 1 1/3’

Plein Jeu IV

Neuvième 8/9

Hautbois 16’

Bombarde 8’

Cromorne 8’

Chamade 8'

GERMAN BAROQUE

Geigen 16’

Spitz Prinzipal 8'

Singendgedeckt 8'

Doppel Flute 8'

Spitzgamba 8'

Unda Maris II 8’

Oktav 4'

Blockflöte 4'

Oktave 2'

Gemshorn 2'

Oktave 1'

Klein Mixtur lll

Sesquialtera II

Dulzian 16’

Schalmey 8’

Krummhorn 8’

Festival Trumpet 8’

SOLO

AMERICAN ECLECTIC

Grand Diapason 8

Flauto Mirabilis 8’

Cellos Céleste II 8'

Major Octave 4’

Orchestral Flute 4'

Grand Cornet V

Grand Mixture lV-Vlll

Bombarde 16’

Trompette Harmonique 8'

French Horn 8'

Clairon Harmonique 4’

Trompette en Chamade 8’

Solo LIB/MIDI

Tremulant

Solo Unison Off

ENGLISH CATHEDRAL

Major Diapason 8'

Concert Flute 8'

Violes Célestes II 8'

Violetta 4'

Harmonic Flute 4’

Mounted Cornet V

Super Octave 2’

Tuba Magna 16'

Chorus Trumpet 8'

English Horn 8’

Tuba Clarion 4'

Pontifical Trumpet 8'

FRENCH ROMANTIC

Principale Violono 8’

Flauto d’Orchestra 8’

Violoncellos Céleste II 8’

Ottava 4’

Flauto Veneziano 4’

Cornet des Violes III

Plein Jeu IV

Petite Bombarde 16’

Bombarde 8’

Oboe d’Orchestre 8’

Clairon Harmonique 4’

Tromba del Giubileo 8’

GERMAN BAROQUE

Bach Principal 8’

Hohl Flöte 8’

Schwebung II 8’

Muted Viols II 4’

Suabe Flöte 4’

Blöckpfeife 2’

Tierce Mixture V

Pontifical Trumpet 16’

Trompete 8’

Regal 8’

Trompette en Chamade 4’

Pontifical Trumpet 8'

PEDAL

AMERICAN ECLECTIC

Principal Bass 32'

Contra Bourdon 32'

Open Wood 16'

Principal 16’

Subbass 16’

Echo Bourdon 16'

Violone 16’

Octave 8’

Bass Flute 8'

Violoncello 8'

Choral Bass 4'

Nachthorn 4'

Principal 2'

Mixture IV

Contra Bombarde 32'

Bombarde 16’

Posaune 16’

Trumpet 8’

Trombone 8’

Clarion 4’

Library/MIDI A

Library/MIDI B

Great to Pedal 8

Swell to Pedal 8, 4

Choir to Pedal 8

Solo to Pedal 8

ENGLISH CATHEDRAL

Double Open Diapason 32’

Open Wood 32'

Major Bass 16'

Open Diapason 16'

Bourdon 16’

Lieblich Bourdon 16'

Cello 16'

Diapason 8’

Flute 8'

Violon 8'

Fifteenth 4'

Flute 4'

Twenty-Second 2'

Mixture lll

Double Waldhorn 32'

Trombone 16’

Bass Clarinet 16’

Tromba 8’

Trumpet 8’

Oboe 4’

FRENCH ROMANTIC

Principal 32'

Contra Violon 32'

Contrebasse 16'

Principal 16’

Soubasse 16'

Bourdon Doux 16'

Dulciane 16’

Montre 8’

Bourdon 8'

Dulcett 8'

Prestant 4'

Cor de Nuit 4'

Flûte 2'

Plein Jeu III

Contre Hautbois 32’

Bombarde 16’

Contra Fagott 16’

Trompette 8’

Cromorne 8’

Clairon Harmonique 4’

GERMAN BAROQUE

Prinzipalbass 32'

Untersatz 32'

Grossgamba 16'

Prinzipalbass 16'

Bordun 16'

Lieblich Gedackt 16’

Erzähler 16’

Oktave 8’

Gedeckt Bass 8’

Gross Quint 10 2/3’

Oktave 4’

Blockflute 4’

Zink 2’

Hintersatz III

Bombarde 32’

Posaune 16’

Dulzian 16’

Trompete 8’

Posaune 8’

Rohr Schalmei 4’

Library

Infinity Series 489

CLASSICAL ORGAN LIBRARY

1 Principal 32’

2 Contra Violone 32’

3 Tibia 32’

4 Contra Bourdon 32’

5 Diapente Grave 21 1/3’

6 Prestant 16’

7 Contre Basse 16’

8 Lieblich Gedackt 16’

9 Dulciana 16’

10 Open Wood 16’

11 Montre 16’

12 Spitzflute 16’

13 Quint 10 2/3’

14 Principal 8’

15 Octave 8’

16 English Diapason 8’

17 Italian Principal 8’

18 Gemshorn-1 8’

19 Gemshorn-2 8’

20 Gamba 8’

21 Violins III 8’

22 Gamba Céleste II 8’

23 Salicional 8’

24 Unda Maris II 8’

25 Dulciana 8’

26 Aeoline 8’

27 Aeoline Céleste II 8’

28 Flute Harmonique 8’

29 Gross Flute 8’

30 Holzgedackt 8’

31 Quintadena 8’

32 Rohrgedackt 8’

33 Quint 5 1/3’

34 Octave 4’

35 Oktav 4’

36 Principal 4’

37 Rohrflöte 4’

38 Orchestral Flute 4’

39 Open Flute 4’

40 Unda Maris II 4’

41 Gross Tierce 3 1/5’

42 Violetta in Quinta 2 2/3’

43 Quinte 2 2/3’

44 Doublette 2’

45 Salicional 2’

46 Piccolo 2’

47 Tierce 1 3/5’

48 Larigot 1 1/3’

49 Septième 1 1/7’

50 Sifflöte 1’

51 Jeu de Clochette II

52 Grave Cornet V

53 Tertian II

54 Pedal Grand Mixtur VI

55 Grave Mixtur IV

56 Harmonics V

57 Grand Fourniture VI

58 Tierce Fourniture VI

59 Grand Mixture IV-VIII

60 Klein Mixture   III

61 Quartane II

62 Grand Ophicleide 64’

63 Double Ophicleide 32’

64 Contre Bombarde 32’

65 Contra Fagott 16’

66 Fagotto 16’

67 Double Trumpet 16’

68 Pontifical Trumpet 16’

69 Rankett 16’

70 Trompet 8’

71 Trompette 8’

72 2nd Trompette 8’

73 2nd Trumpet 8’

74 Trompette

Harmonique 8’

75 French Horn 8’

76 Hautbois 8’

77 Rohr Schalmei 8’

78 Flugel Horn 8’

79 Dulzian 8’

80 Cromorne 8’

81 Oboe 8’

82 Cor d’Amour 8’

83 Regal 8’

84 Vox Humana 8’

85 Vox Humaine 8’

86 Tuba Mirabilis 8’

87 State Trumpet 8’

88 Chamades 8’

89 Trumpet de Fete 8’

90 Clarion 4’

91 2nd Clairon 4’

92 Schalmei 4’

93 16+4 Flute Céleste IV

94 16+4 Célestes IV

95 16+8+4 Célestes VI

96 16+8+4 Célestes + VoxH

97 Organ Harp 8’

98 Celesta 4’

99 Barker Noise

THEATER ORGAN LIBRARY

200 16+8 Voxes II

201 16+4 Voxes II

202 Tibia 8’

203 Tibia 4’

204 Viol d’Orchestre II 8’

205 Viol d’Orchestre II Trem 8’

206 Tuba Trem 8’

207 Cornopean Trem 8’

208 Tibia 16+8+Vox16+8

209 Tibia 16842+Strings

210 Tibia 84+Quint+

Vox+Cel

211 Vox 16+8+Célestes

212 Tibia 84+VDO Cel

213 Tibia 84+Vox +

Célestes

214 Tibia 84+ Célestes

+Tuba

215 Tibia 4+Célestes 8

216 Tibia 42+Strings 168

217 Tibia 4+Kinura 8

218 Strings 8+Tibia 2+Glock

219 Tibia 4+Glock

220 Posthorn 8’

ORCHESTRAL LIBRARY

300 Grand Piano

301 Grand Piano 2

302 Electric Piano

303 Fantasia

304 Harpsichord 8

305 Harpsichord 4

306 Harpsichord Lute

307 Harpsichord 8+4

308 Celesta

309 Xylophone

310 Orchestral Harp

311 Drawbars 1

312 Drawbars 2

313 Guitar

314 Acoustic Bass

315 String Ensemble

316 Smooth Strings

317 Orchestra

318 Slow Strings

319 Pizzicato

320 Contra Basses

321 Octave Strings

322 Slow Violin/Cello

323 Chamber Strings

324 Violin

325 Saxophone

326 Tenor Saxophone

327 Piccolo Trumpet

328 Orchestral Trumpet

329 Mellow Horn

330 Trombone

331 Bright Brass

332 Brass Ensemble

333 Muted Trumpet

334 French Horn Section

335 French Horn

336 Tuba

337 Orchestral Flute

338 Bagpipes

339 Pan Pipes

340 Recorder

341 Orchestral Piccolo

342 Orchestral English Horn

343 Orchestral Bassoon

344 Orchestral Oboe

345 Orchestral Clarinet

346 Bandoneon

347 Choral Aahs

348 Choral Oohs

349 Organ Chimes

350 Tubular Bells

351 Tower Chimes

352 Handbells

353 Sleigh Bells

354 Timpani

355 Timpani Roll

356 Ride Cymbal

357 Crash Cymbal

358 Orchestral Snare

359 Snare Roll

360 Percussion Set

Get in touch

Specific needs or wishes? We are glad to assist you!

Contact us

More information?

We are happy to provide you with an informational brochure.

Request brochure

Subscribe to our monthly newsletter

Thanks for subscribing, complete your profile

Thanks for completing your profile.
