32 STOPS UNBELIEVABLE SOUNDS

Rodgers proudly presents THE AMERICAN SERIES 232 two-manual Organ, perfectly suited for the home or small worship spaces. The stoplists encompass the American musical traditions in literature and various worship styles. Each American Series organ features Three American Organ Types, sampled from three American pipe organs: American Classic, American Eclectic, and American Symphonic. Each Organ Type has the same default stop name as the engraving.

STOPS

Banner The American Series 232

Specifications

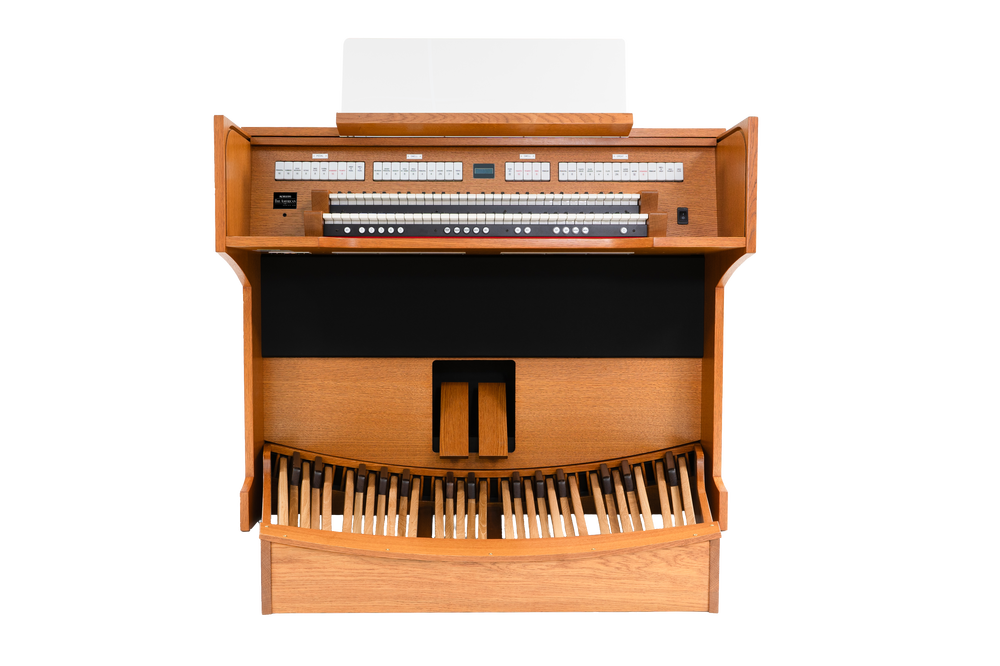

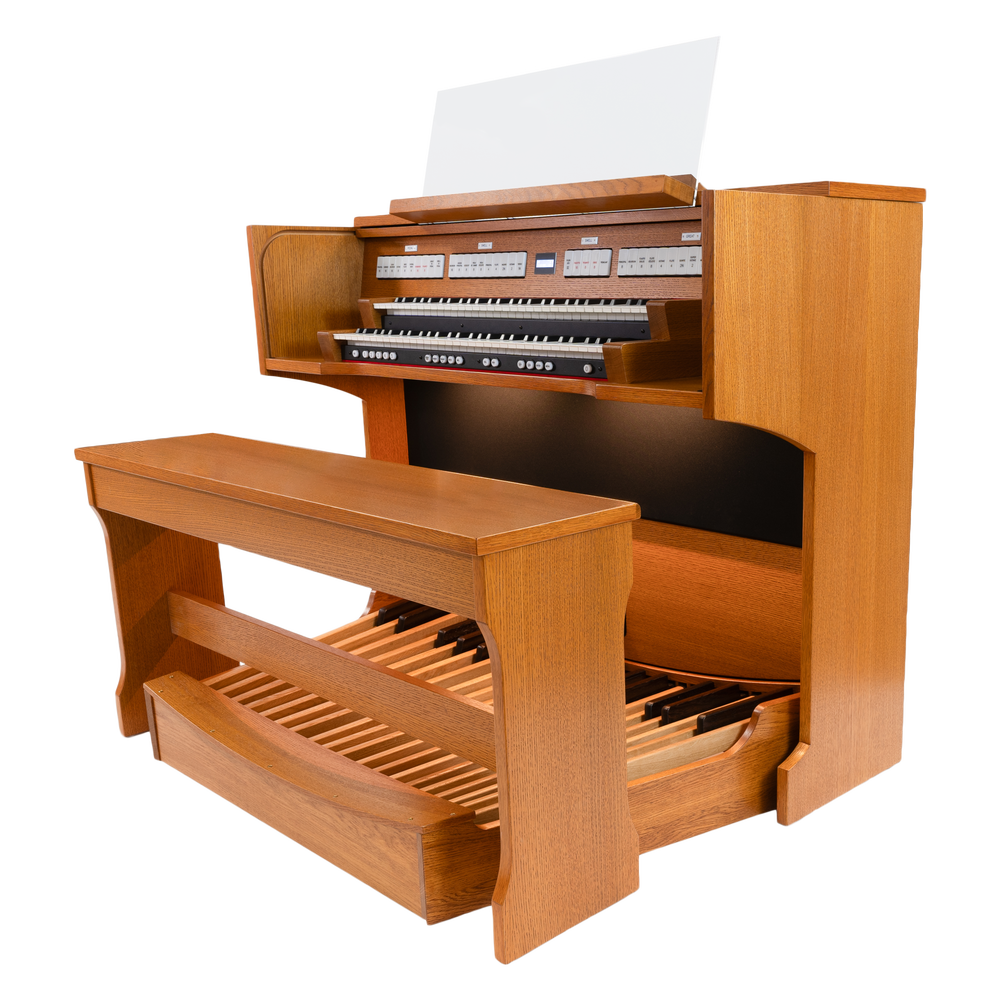

The American Series 232

SPECIFICATIONS

32 Main Stops + 64 Organ Style Stops

3 American Organ Types

2 Orchestral Voices

Keyboards

Performance Touch™ velocity-sensitive keyboards

Pedalboard

Concave, Radiating AGO Pedalboard, Lighted

General Pistons

5

Couplers

3 (Great to Pedal, Swell to Pedal,
Swell to Great)

Tremulants

Great and Swell

Shoes

Divided expression, two wood Expression Shoes (Classic Rodgers metal shoes are also available as an option.)

Memory

125 internal memory banks

Dimensions

Cabinet Height: 45” / 114.4cm

Height with Music Rack: 55.6” / 141.2cm

Cabinet Width: 54.25” / 137.8cm

Cabinet Depth: 24.5” / 62.2cm

Depth with Pedalboard: 43” / 109.2cm

Console: 246 lbs (111.5 kg)

Bench: 42 lbs (19 kg)

Pedalboard: 61 lbs (27.6 kg)

AVAILABLE COLORS:

Dark

Oak

Medium

Oak







Features

The American Series 232

  • Wood veneer cabinet available in Medium or Dark Oak

  • Matching bench

  • Rolltop

  • Lighted pedalboard

  • Built-in and conveniently located headphone jack for quiet practice

  • Two onboard Orchestral Voices (Orchestral Trumpet and Orchestral Oboe)

  • 125 Memory Levels

  • Memory + and - thumb pistons to easily change the Memory Level from 1-125

  • Built-in Demo Songs, including music for worship and weddings

  • Organ Type piston selects an American Organ Type sampled from three American Churches: American Classic, American Eclectic, and American Symphonic.

  • External connections: Aux In, Aux Out, MIDI In, MIDI Out—compatible for an external MIDI sound module for additional voices such as Chimes, Piano, or more Orchestral instruments

  • External connections: Aux In, Aux Out, MIDI In, MIDI Out—compatible for an external MIDI sound module for additional voices such as Chimes, Piano, or more Orchestral instruments

  • User-friendly Transpose thumb pistons (up and down) changes the key in half-steps

  • 9 historic temperaments

  • 12 sampled Room Reverb settings

  • Console audio: 2 channels x 50 watts full range audio plus 1 channel x 160 watts subwoofer

  • Optional 5 channel external audio using standard Rodgers speakers and amps

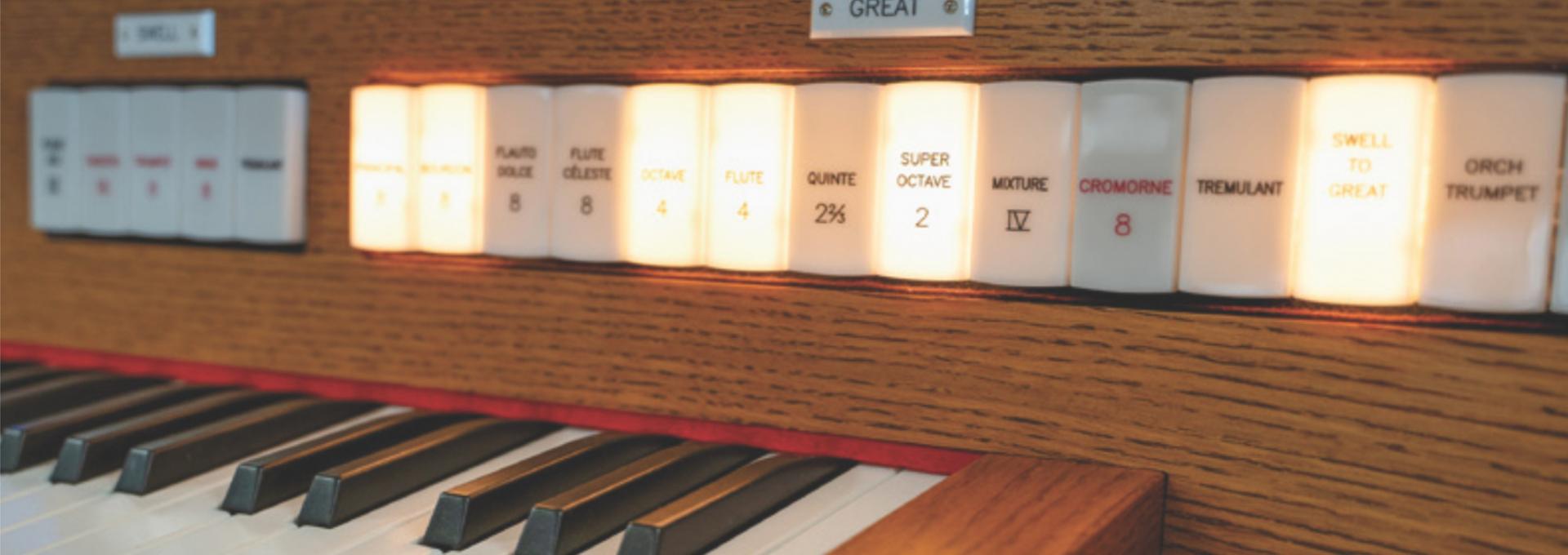

Stoplist

GREAT

Principal 8

Bourdon 8

Flauto Dolce 8

Flute Céleste 8

Octave 4

Flute 4

Quint 2 2/3

Super Octave 2

Mixture IV

Cromorne 8

Tremulant

Swell to Great

Orchestral Trumpet

Orchestral Oboe

SWELL

Bourdon 16

Geigen Principal 8

Gedeckt 8

Viole de Gambe 8

Viole Céleste 8

Principal 4

Flute 4

Nazard 2 2/3

Octavin 2

Tierce 1 3/5

Plein Jeu IV

Fagotto 16

Trumpet 8

Oboe 8

Tremulant

PEDAL

Principal 16

Subbass 16

Echo Bourdon 16

Octave 8

Bass Flute 8

Choral Bass 4

Bombarde 16

Trumpet 8

Great to Pedal

Swell to Pedal
