42 Main Stops 128 voices
42 main stops (126 total) and 128 voices, including orchestral Trumpet & Oboe—voiced across American Classic, Eclectic, and Symphonic organ types.
42 main stops (126 total) and 128 voices, including orchestral Trumpet & Oboe—voiced across American Classic, Eclectic, and Symphonic organ types.

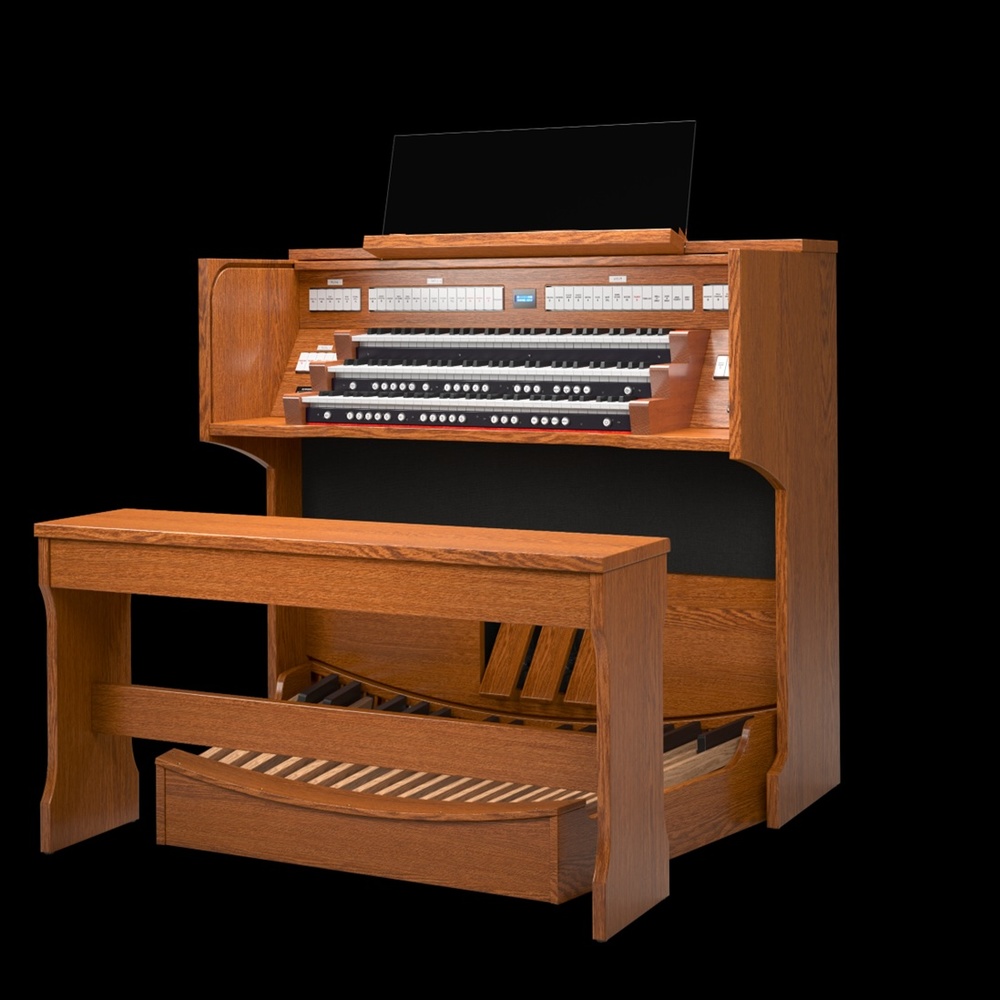

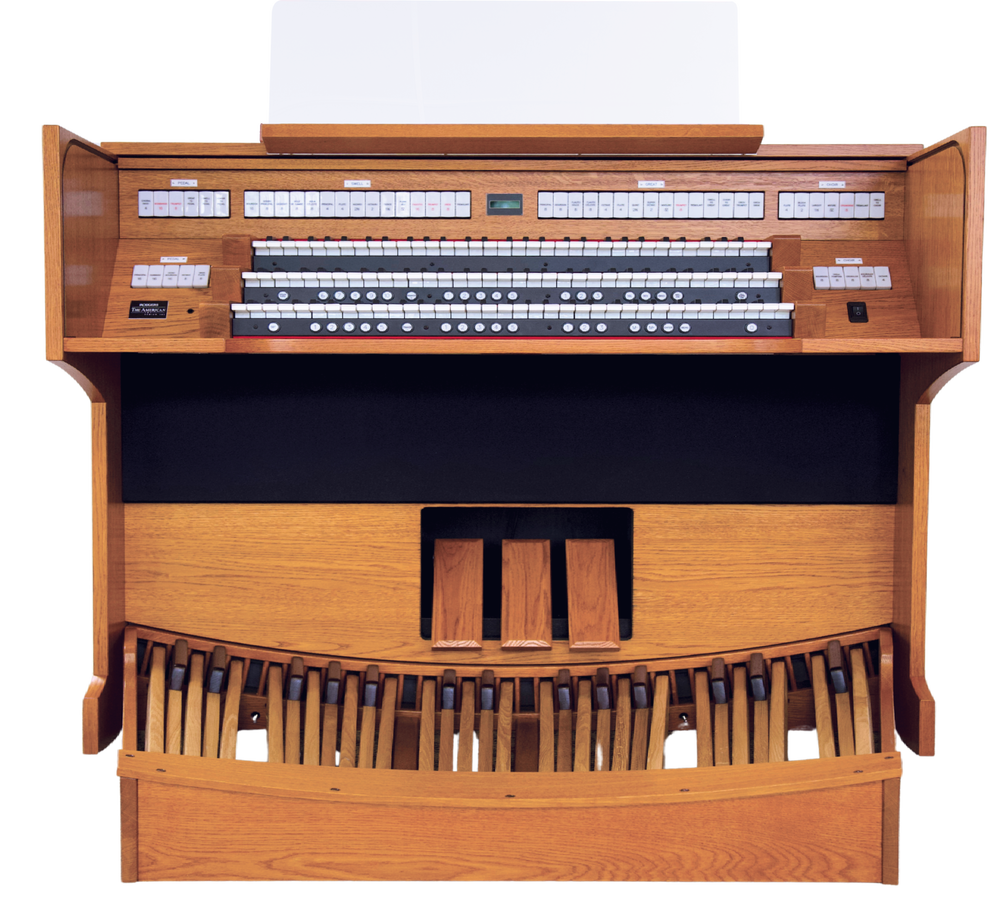

The American Series 342 Three-Manual Organ Designed for the home or small worship spaces, the American Series 342 captures the essence of American organ building. It features three authentic organ types—American Classic, American Eclectic, and American Symphonic—each sampled from distinguished American pipe organs and retaining their original engraved stop names.
SPECIFICATIONS
VOICES
98 VOICES
32 MAIN STOPS
96 TOTAL ORGAN STOPS
THREE AMERICAN STYLES
2 ORCHESTRAL VOICES: TRUMPET AND OBOE
ORGAN CONTROLS
RODGERS LIGHTED THUMB PISTONS AND LIGHTED TABS
KEYBOARDS
PERFORMANCE TOUCH™ VELOCITY-SENSITIVE KEYBOARDS
PEDALBOARD
32-NOTE RADIATING, LIGHTED AGO PEDALBOARD
DIMENSIONS AND WEIGHTS
CABINET HEIGHT: 47-5/8” / 120.97CM
HEIGHT WITH MUSIC RACK: 58.25” / 147.93CM
CABINET WIDTH: 54.25” / 137.8CM
CABINET DEPTH: 25.625” / 65.09CM
DEPTH WITH PEDALBOARD: 43.625” / 110.88CM
CONSOLE: 283 LBS (128.4 KG)
BENCH: 42 LBS (19 KG)
PEDALBOARD: 61 LBS (27.6 KG)
Dark
Oak
Medium
Oak
Yes. The three-manual 342 is voiced for intimate sanctuaries, chapels, and home practice, while providing concert-level color and projection when needed.
It provides 42 main stops (126 total organ stops) and 128 voices, including orchestral colors such as Trumpet and Oboe.
Three authentically sampled American styles—Classic, Symphonic, and Eclectic—selectable at the console to match literature and worship styles.
Yes. The 342 offers MIDI and audio connectivity, headphone practice, and options for internal or external audio systems.
• WOOD VENEER CABINET DESIGN AVAILABLE IN MEDIUM OAK OR DARK OAK
• ROLLTOP
• EXTERNAL CONNECTIONS: AUX IN, AUX OUT, MIDI IN, MIDI OUT
• HEADPHONE JACK
• 9 HISTORIC TEMPERAMENTS
• 125 MEMORY LEVELS • DEMO SONGS
• TWO ORCHESTRAL VOICES (ORCHESTRAL TRUMPET AND ORCHESTRAL OBOE)
• 12 RODGERS REVERB SETTINGS SETTINGS
• AUDIO CHANNELS: 2.1 INTERNAL
• OPTIONAL 4.1 EXTERNAL AUDIO USING STANDARD RODGERS AMPS AND SPEAKERS
PRINCIPAL 8
BOURDON 8
FLAUTO DOLCE 8
OCTAVE 4
FLUTE 4
QUINT 2 2/3
SUPER OCTAVE 2
MIXTURE IV
TRUMPET 8
TREMULANT
SWELL TO GREAT
CHOIR TO GREAT
ORCHESTRAL TRUMPET
ORCHESTRAL OBOE
BOURDON 16
GEIGEN PRINCIPAL 8
GEDECKT 8
VIOLE DE GAMBE 8
VIOLE CÉLESTE 8
PRINCIPAL 4
OCTAVIN 2
TIERCE 1 3/5
PLEIN JEU IV
FAGOTTO 16
TRUMPET 8
OBOE 8
TREMULANT
BOURDON 8
VIOLA POMPOSA 8
ERZAHLER 8
ERZAHLER CÉLESTE 8
OCTAVE 4
FLUTE 4
BLOCK FLUTE 2
LARIGOT 1 1/3
MIXTURE IV
CROMORNE 8*
TREMULANT
SWELL TO CHOIR
PRINCIPAL 16
SUBBASS 16
ECHO BOURDON 16
OCTAVE 8
BASS FLUTE 8
CHORAL BASS 4
BOMBARDE 16
TRUMPET 8
GREAT TO PEDAL
SWELL TO PEDAL
CHOIR TO PEDAL
