34 Stops Your dream starts right in your very own home..

The Inspire series 234 was designed and manufactured as a home organ: the compact console, made from oak and available in different colors, has the classic look to bring inspiration to any home. With its two keyboards, 34 main stops, 81 Voice Palette stops, 35 Organ Library stops, and 26 Orchestral Library voices, for a total of 176 stops and voices, the organ provides a rich variety of musical possibilities.

Stops

143 PIPE ORGAN VOICES

The innovative Voice Palette™ system of 108 stops, plus the Organ Library of 35 stops, provide a total of 143 high- resolution pipe organ stops in the Rodgers Inspire 234. The organist can experiment with an infinite combination of American Eclectic, English Cathedral, French Romantic, and German Baroque organ stops.


26 Orchestral voices Rehearsing, Composing and Improvising

The organist can rehearse, compose and improvise anytime at home to prepare for a church service, perfect a concert or recital, teach students the organ, or engage in a little musical imagination. Dreams can start right at home!

Orchestral voices

Specifications

Inspire Series 234

Voices

34 stops / 176 total voices

4 unique organ styles

108 total Voice Palette™ voices

35 Organ Library stops

26 orchestral voices

Keyboards

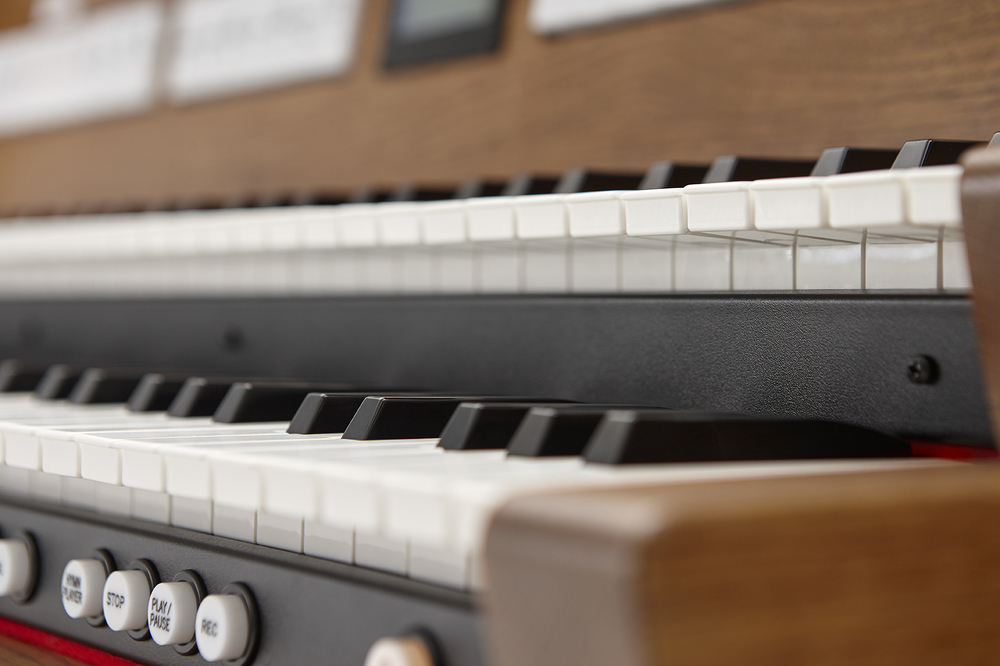

Performance Touch™ velocity-sensitive keyboards

Pedalboard

Velocity-sensitive
32-note AGO pedalboard

General Pistons

5

Toe pistons

None (5 optional)

Divisional Pistons

None (optional)

Couplers

3 (Great to Pedal, Swell to Pedal,
Swell to Great)

6 Library Couplers (2 x Great, 2 x Swell, 2 x Pedal)

Bass Coupler

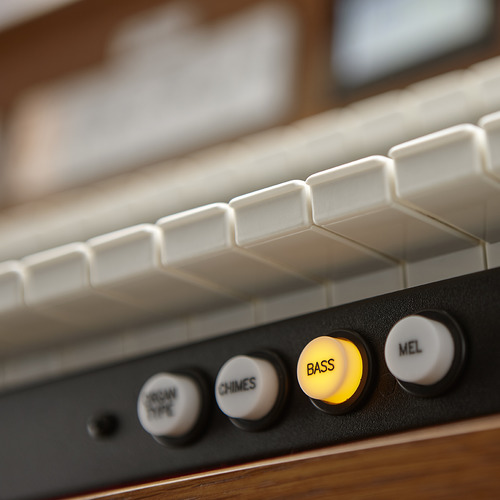

Melody Coupler

Tremulants

2 (Great, Swell)

Shoes

1 (programmable)

Memory

99 internal memory levels, unlimited with USB storage

Console Dimensions

Height: 46.1" (117 cm)

Width: 60.0” (152.4 cm)

Depth: 24.5” (62.3 cm)

Depth with pedalboard: 45.5” (115.5 cm)

AVAILABLE COLORS:

Dark

Oak

Medium

Oak

Light

Oak

Features

Inspire Series 234

  • Traditional wood veneer cabinet

  • Available in light, medium and dark oak veneer

  • Tab stop controls

  • Record/playback with STOP, PLAY, REC pistons

  • USB-enabled for unlimited storage of registration data and saved performances

  • Hymn Player automatically plays 350 built-in hymns with introduction & verse or Prelude mode

  • Bench in matching finish

  • 32-note radiating AGO pedalboard velocity-sensitive for orchestral voices

  • Self-contained pedalboard mechanism for greater reliability on uneven flooring or carpeting

  • Kick switch programmable as Off, Next, Prev, Sustain and Gospel Rotor for orchestral voices

  • Programmable pedal F# sustain function for orchestral voices

  • Memory +/- pistons

  • 9 historic temperaments

  • Tuning control

  • -6/+5 transposer

  • True Sound Space: 12 real reverb environments

  • Stereo headphone jack

  • 2 x 1/4” Line inputs

  • 2 x 1/4” Line outputs

  • MIDI In and Out connections

  • 2.1-channel internal audio system:

  • 2 channels x 50 watts fullrange audio + 1 channel x 160 watts subwoofer

  • 5 loudspeakers using coaxials for a rich and highly defined sound

  • 4-channel external audio outputs

  • 2-channel audio system for external loudspeakers (optional)

  • Onboard voicing finishing and leveling controls

  • Pipe organ modeling technologies

  • Great/Pedal Enclosed

  • Organ Type piston instantly activates American Eclectic, English Cathedral, French Romantic or German Baroque stops

  • Adjustable tremulants

  • High-Resolution Color LCD Display

  • 99 internal memory banks

  • Rodgers Play (optional) allows you to remotely play back hymns, preludes, and other onboard music

  • Library Direct Select instantly selects the desired Library voice by pressing a key

Stoplist

GREAT

American Eclectic

Violone 16

Principal 8

Bourdon 8

Gemshorn 8

Octave 4

Quinte 2-2/3

Super Octave 2

Fourniture IV

Trumpet 8

Library/MIDI A

Library/MIDI B

Tremulant

Swell to Great

English Cathedral

Open Diapason 16

Open Diapason 8

Chimney Flute 8

Second Diapason 8

Principal 4

Waldflute 4

Fifteenth 2

Mixture IV

Tromba 8

French Romantic

Montre 16

Montre 8

Flûte Harmonique 8

Gambe 8

Prestant 4

Quinte 2-2/3

Doublette 2

Fourniture IV

Trompette 8

German Baroque

Prinzipal 16

Prinzipal 8

Rohrflöte 8

Quintatön 8

Oktave 4

Quinte 3

Super Oktave 2

Mixtur VI

Trompete 8

Variant Library

Bourdon 16

Diapason 8

Clarabel Flute 8

Erzähler Céleste II 8

Gemshorn 4

Cornet V

Harmonic Piccolo 2

Cymbel III

Tuba 8

SWELL

American Eclectic

Diapason 8

Bourdon 8

Viola Céleste II 8

Octave 4

Flute Traverse 4

Nazard 2-2/3

Block Flute 2

Tierce 1-3/5

Plein Jeu IV

Oboe 8

Library/MIDI A

Library/MIDI B

Tremulant

English Cathedral

Horn Diapason 8

Stopped Diapason 8

Viole Céleste II 8

Octave Gamba 4

Flute 4

Quintflute 2-2/3

Lieblich Piccolo 2

Seventeenth 1-3/5

Mixture III

Cornopean 8

French Romantic

Montre 8

Bourdon 8

Voix Céleste II 8

Prestant 4

Flûte Octaviante 4

Nasard 2-2/3

Octavin 2

Tierce 1-3/5

Plein Jeu III

Hautbois 8

German Baroque

Prinzipal 8

Holzgedackt 8

Gamba 8

Oktave 4

Flöte 4

Nasard 3

Waldflöte 2

Quinte 1-1/3

Scharff IV

Dulzian 8

Variant Library

Geigen Principal 8

Harmonic Flute 8

Flute Céleste II 8

Fugara 4

Rohrflute 4

Sesquialtera II

Italian Principal 2

Sifflöte 1

Ripieno IV

Trumpet 8

PEDAL

American Eclectic

Principal 16

Subbass 16

Octave 8

Bass Flute 8

Choral Bass 4

Bombarde 16

Trumpet 8

Clarion 4

Library/MIDI A

Library/MIDI B

Great to Pedal

Swell to Pedal

English Cathedral

Open Diapason 16

Bourdon 16

Diapason 8

Flute 8

Fifteenth 4

Trombone 16

Tromba 8

Tromba 4

French Romantic

Contrebasse 16

Soubasse 16

Prestant 8

Bourdon 8

Prestant 4

Bombarde 16

Trompette 8

Clairon 4

German Baroque

Prinzipalbass 16

Subbass 16

Oktave 8

Gedackt Bass 8

Oktave 4

Posaune 16

Trompete 8

Klarine 4

Variant Library

Violone 16

Bourdon Doux 16

Violoncello 8

Lieblich Bourdon 8

Nachthorn 4

Bass Clarinet 16

Trombone 8

Mixture III

Library

Inspire Series 234

Classical Organ Library

• Principal 32’

• Lieblich Gedackt 16’

• Dulciana 16’

• Open Wood 16’

• Italian Principal 8’

• Gamba Céleste II 8’

• Flûte Harmonique 8’

• Principal 4’

• Rohrflöte 4’

• Orchestral Flute 4’

• Unda Maris II 4’

• Violetta in Quinta 2 2/3’

• Salicional 2’

• Piccolo 2’

• Tierce 1 3/5’

• Larigot 1 1/3’

• Septième 1 1/7’

• Sifflöte 1’

• Jeu de Clochette II

• Pedal Grand Mixtur VI

• Tierce Fourniture VI

• Grand Mixtur IV–VIII

• Klein Mixture III

• Contre Bombarde 32’

• Pontifical Trumpet 16’

• Rankett 16’

• Trompet 8’

• French Horn 8’

• Cromorne 8’

• Regal 8’

• Vox Humana 8’

• Tuba Mirabilis 8’

• Trumpet de Fete 8’

• Clarion 4’

• Schalmei 4’

Orchestral Library

• Grand Piano

• Electric Piano

• Drawbars 1

• Drawbars 2

• Harpsichord 8

• Harpsichord 8+4

• Celesta

• Orchestral Harp

• Guitar

• Acoustic Bass

• String Ensemble

• Chamber Strings

• Slow Strings

• Orchestral Trumpet

• Bright Brass

• Brass Ensemble

• French Horn

• Orchestral Flute

• Panpipes

• Orchestral Oboe

• Orchestral Clarinet

• Choir Aahs

• Choir Oohs

• Chimes

• Handbells

• Timpani
